ZEDEX® 324 family
As PEEK, only better – up to 250°C
The family ZX-324® is 100% virgin PEEK. Unlike to commonly used PEEK, it has a higher glass transition temperature – and better ductility, consenting to reduce the machining times dramatically. Approx. 55% time saving has been already archieved on a real finished parts.
The other properties are similar to the common ones, but thanks to our wide range of hollow rods you can save up to 70% in weight in comparison to bars, hence money. Have a look to our delivery programme.
When to use the family ZX-324® ?
- For temperatures up to 250°C
- When in contact with chemicals
- If FDA conformity or EU 10/2011 approval is required
(basic type ZX-324)
When is the ZX-324® family not suitable?
- If an price-effective solution is required (e.g. ZX-324V1T® as alternative)
- When low wear and friction are required (e.g. ZX-324V2T® as alternative)
What can be replaced?
| ZEDEX | temperature | strength | toughness | friction | precision | wear | costs | pv values | Chemicals | ||||||
| ZX-324 (PEEK) | 8 | 7 | 5 | 8 | 7 | 4 | 3 | 7 | 8 | ||||||
| ZX-324V1T | 8 | 6 | 4 | 8 | 8 | 6 | 4 | 8 | 8 | ||||||
| ZX-324V2T | 8 | 6 | 3 | 7 | 7 | 4 | 3 | 8 | 8 | ||||||
| ZX-324V11T | 7 | 7 | 4 | 6 | 8 | 4 | 4 | 9 | 6 | ||||||
| ZX-324VMT | 8 | 8 | 2 | 8 | 9 | 9 | 2 | 8 | 8 | possible | |||||
| Replacement for | |||||||||||||||
| PEEK | 8 | 6 | 7 | 5 | 7 | 4 | 4 | 7 | 8 | ||||||
| PPS | 5 | 7 | 2 | 6 | 8 | 2 | 6 | 3 | 9 | ||||||
| PEI | 5 | 6 | 10 | 5 | 8 | 3 | 6 | 3 | 4 | ||||||
| TPi | 7 | 6 | 7 | 5 | 7 | 4 | 3 | 7 | 7 | ||||||
| Ceramics AI203 | 10 | 10 | 1 | 10 | 10 | 4 | 3 | 6 | 9 | ||||||
| Stainless steel 1.4301 | 9 | 10 | 5 | 1 | 10 | 3 | 8 | 1 | 8 |
Basic type
ZX-324
⟶ value the higher = better
ZX-324 Material data sheet
Characteristics
- hard, stiff, tough
- high fatigue strength
- good hydrolysis resistance
- enough UV resistance and resistance to weathering
- resistence to stress cracking (except with acetone)
- flame resistant (low toxicity of flue gases)
- good machinability
- bondable and weldable
- FDA compliant, EU 10/2011 certified, LABS compliant
- PTFE- and Silicone-Free
- vacuum suitable
Resistance
- UV-radiation: use of modifi ed types in case of
strong UV-radiation! - Gamma-radiation: limit absorbed dose 1200 kGy
- Chemicals, resistant: universal resistant
- Chemicals, not resistant: concentrated acids, sulfuric and nitric acid, bromic, sulfonic and chromium acids, halogenated hydrocarbons, sodium, chlorine, fluorine, bromine
- Lubricants and fuels: resistant
- Water: max. water absorption: 0,5 %
dimensional changes: 0,15 %
up to max. 200 °C resistant - Fire behaviour: oxygen index (LOI): 35 %
classifi cation: V-0 (UL94)
Operational parameters
- Temperature (T):
–50 °C to +250 °C (+260 °C) - Surface pressure (p):
max. 41 (125) MPa - Sliding speed (v)
max. 40 m /min - Fatigue(S)
tensile fatigue strength at 20 °C and and 106 stress cycles,
1 Hz = 60 MPaImpacts, vibrations, edge loading, gamma rays in hot and cold water.
Available as:
- plastic granules
- rods
- tubes
- sheets
- 3D Tribo Filament
- machined components
- injection moulded parts
- plain bearing bushes according to DIN
Modification
ZX-324V2T
⟶ value the higher = better
ZX-324V2T Material data sheet
PEEK PTFE-modified
- reduced friction
- high wear resistance
- high PV-value
- high elasticity
Operational parameters
- Temperature (T):
–50 °C to +250 °C (+260 °C) - Surface pressure (p):
max. 40 (85) MPa - Sliding speed (v)
max. 200m/min - Fatigue(S)
tensile fatigue strength at 20 °C and 106 stress cycles,
1 Hz = 56 MPa
Available as:
- plastic granules
- rods
- tubes
- sheets
- 3D Tribo Filament
- machined components
- injection moulded parts
- plain bearing bushes according to DIN
Modification
ZX-324VMT
⟶ value the higher = better
ZX-324VMT Material data sheet
PEEK fibre-reinforced, PTFE
- highest stiffness
- very good wear resistance
- low Stick-Slip tendency
- hardened mating-part is required.
Operational parameters
- Temperature (T):
-50 °C to +250 °C (+260 °C) - Surface pressure (p):
max. 57 (150) MPa - Sliding speed (v)
max. 100m/min - Fatigue(S)
tensile fatigue strength at 20 °C and 106 stress cycles,
1 Hz = 105 MPa
Available as:
- plastic granules
- rods
- tubes
- sheets
- machined components
- injection moulded parts
- plain bearing bushes according to DIN
Examples of use
Product shapes, processing methods
and finished parts
Product shapes
- Granules
- Rods
- Hollow rods
- Sheets
- 3D-Filament
- machined parts
- injection moulded parts
- 3D-printed parts
Processing methods
- CNC milling
- CNC lathe
- Conventional lathe
- CNC automatic lathe
- Grinding
- Threads
- Dressing – profiling
- Sawing
- Planing
- Roughening of adhesive surfaces
- Injection moulding
- Welding
- Coating – cladding
- Labelling
- Bonding
- 3D printing
Finished parts
- Precision bushings
- Plain bearing bushes according to DIN
- Sliding guides
- Slideways

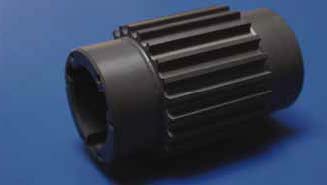

- Gears
- Track rollers
- Spindle nuts
- Seals
- Scrapers
- Gear racks
- Toothed belt discs
- Rudder bearings
- Pump bearings
